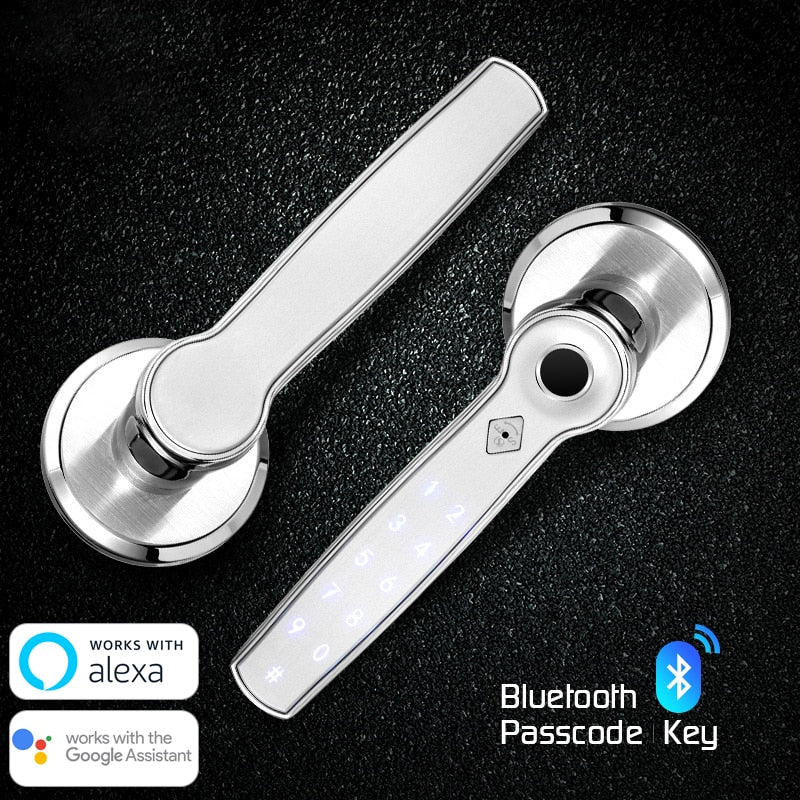

TTLOCK Wifi AI Voice Command Smart Door Lock Bluetooth Fingerprint Support Alexa Google Assistant Easy Replacement 158B
SPECIFICATIONS
Origin: CN(Origin)
Handle Direction: Right Push
Material: aluminium alloy
Model Number: 158BT
Open Direction: Universal both for Right and Left
Wifi AI Voice Command Smart Door Lock 5 Unlock Method Bluetooth Fingerprint Support Alexa Google Assistant Easy Replacement 158BT

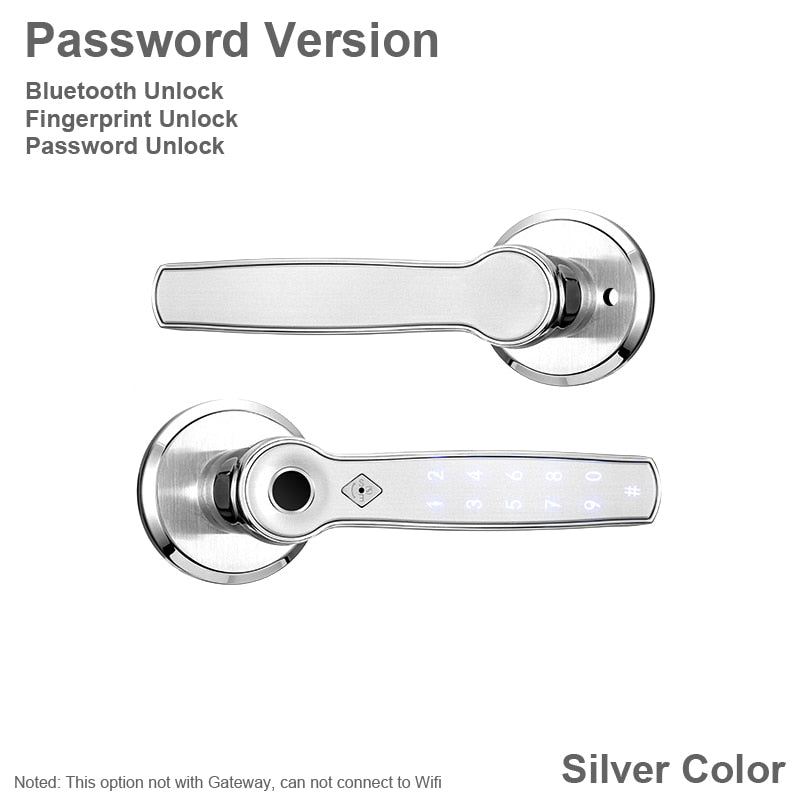

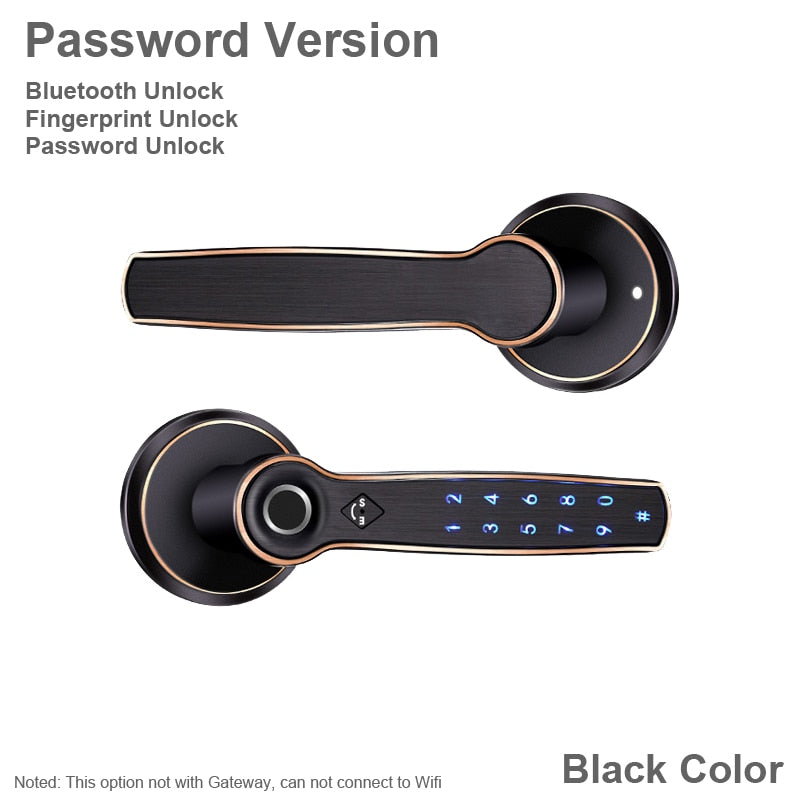

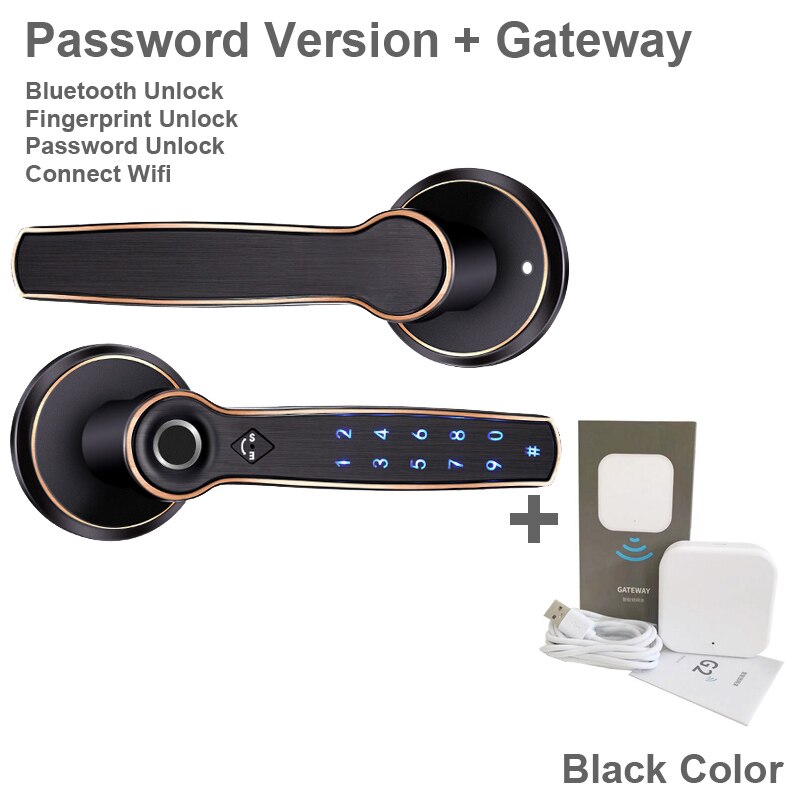

Noted: This model have two versions. "IC Version" and "Password Version"
The different between two version is support IC card unlock and support password unlock, other functions are the same.

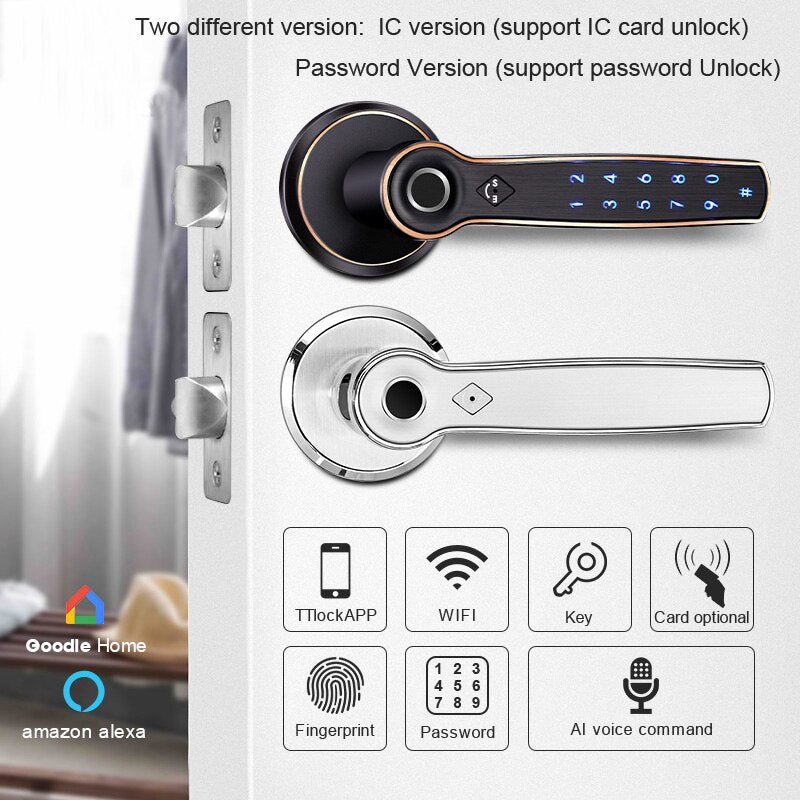

5 Method Open lock
1. Phone APP Unlock (via bluetooth, if add gateway can connect with Wifi) 2. Fingerprint Unlock 3. IC Card or Password Unlock 4. Metal Key 5. AI Voice (Alexa and Google Home, need add gateway) Noted: If select the "IC Version", the lock no have the keyboard. If select the "Password Version", the lock can not read the IC card.
Parameter:
Unlock ways: Fingerprint, TT LOCK APP, WIFI, Passcode, Card, Mechnical key, Al Alexa and google home Material: 304 stainless steel panel, zinc alloy handle Color: silver, black with Red bronze Suitable for: wooden doors, aluminum doors Card type: Mifare 1 Card(13.56MHz) Data Capacity: 110pcs fingerprint Reader Item SIZE: 150mm*65mm*40mm Weight: 1.3kgs Certification: CE/ROHS Working Voltage: 6V(4*AAA batteries) Applicable for door thickness: Standard Edition 30mm-55mm Custom Edition 30mm-100mm Applicable for door frame wideness: 50mm or above Handle Reversible: Yes Available Mortise: 60 or 70 single latch Working Temperature: -20~70℃ Battery life span: support 100000 times unlock operations
Use 4pcs AAA 1.5V battery. (battery not include); Support low power warning. Battery box in front handle.
Products Size:

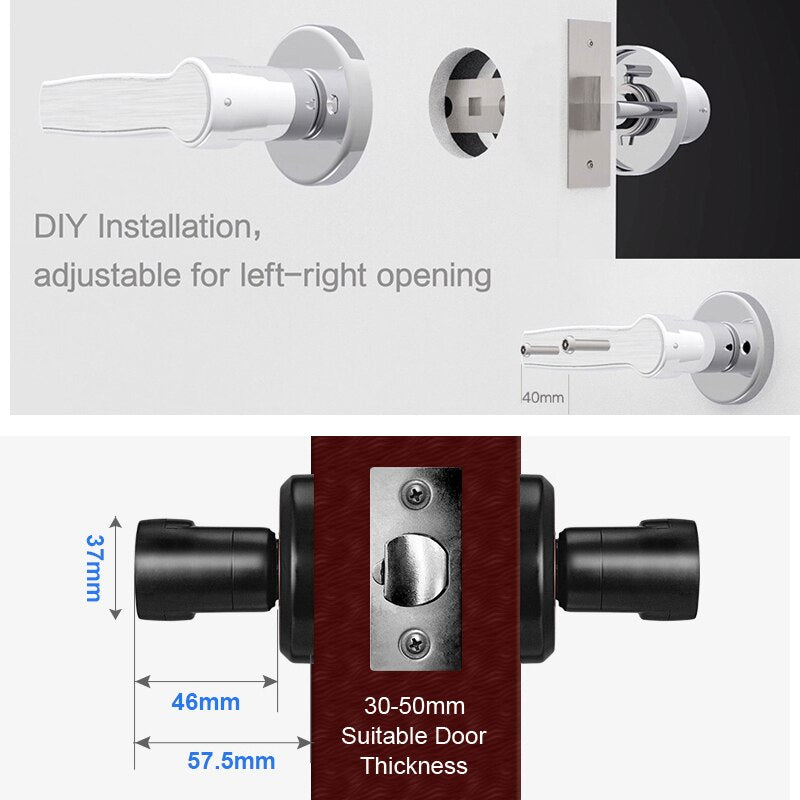

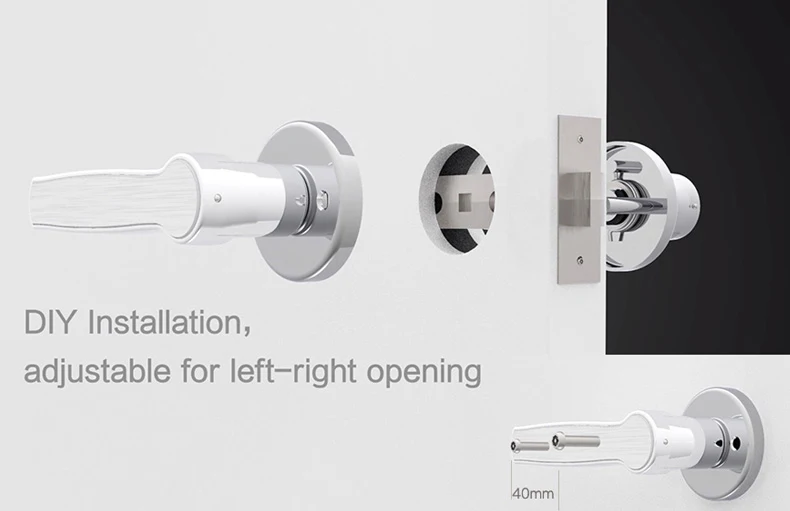

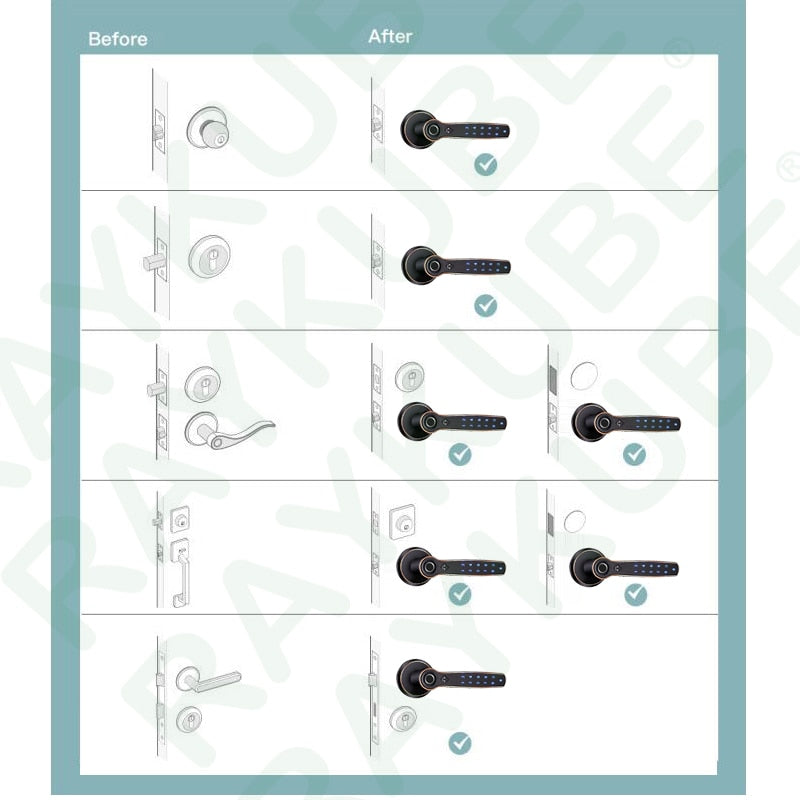

Easy Installtion:
Suitable for the door thickness 30-50mm, if your door is thicker, please contact us. Both for wooden door and metal door and so on.

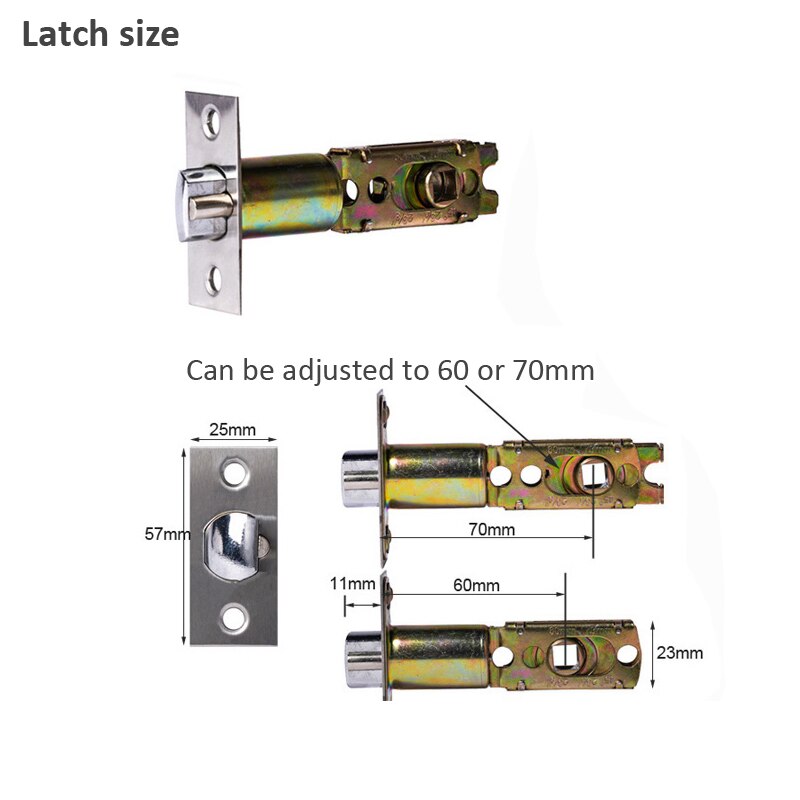

Latch size:
the latch can be adjusted to 60 or 70 mm free

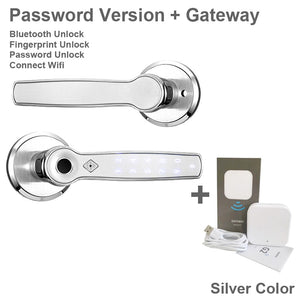

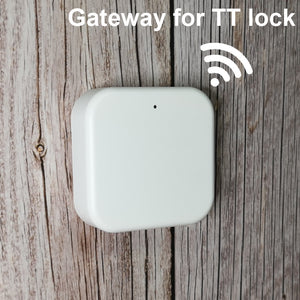

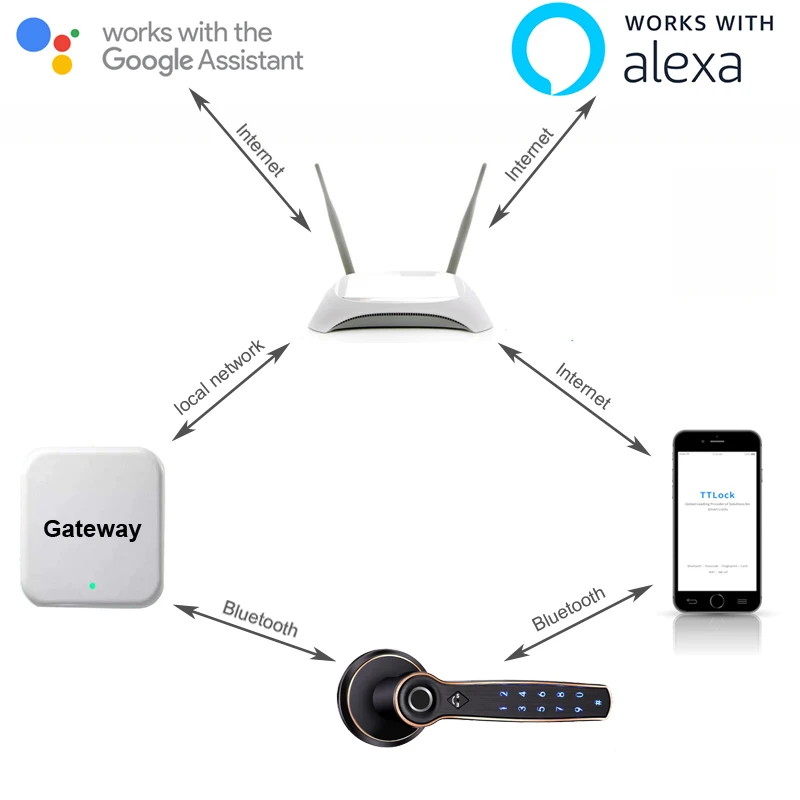

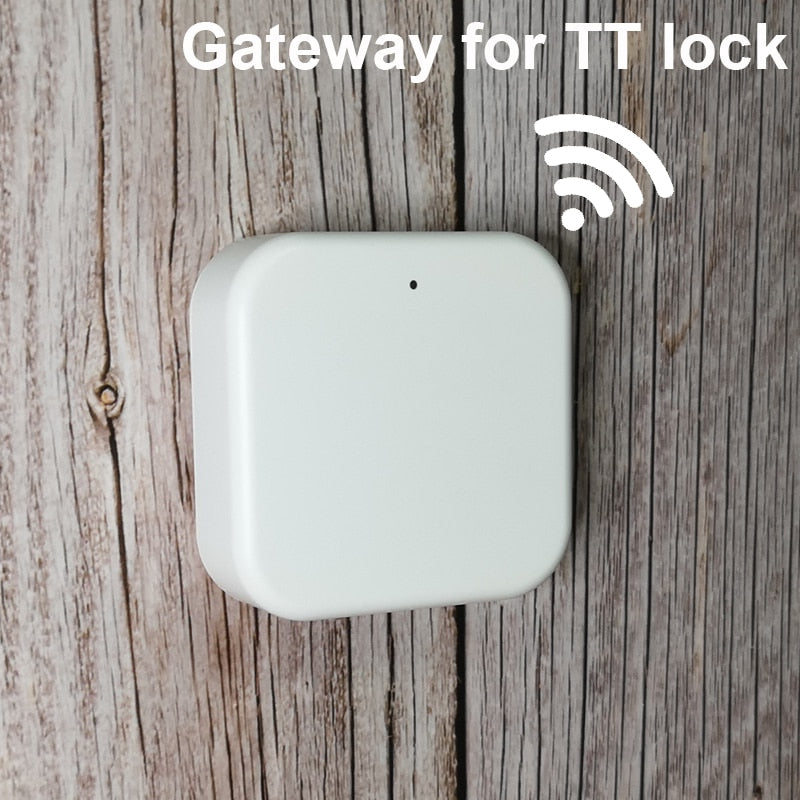

With the gateway can work with the Alexa and Google Assistant
If no with gateway, the lock connect with the lock via bluetooth, it can manage the lock within the bluetooth arange, and also can make the Temporary password to the guest open lock remotely by phone APP. If with gateway, can connect with wifi, work with Alexa and Google Assistant. Control the lock remotely via internet.
About the phone APP (TT lock)
All the lock setting are in the TT lock APP, so it is very easy to used the lock.Only the Admind phone that can manage the lock, but you can authorized to your family as the admind that they also can manage the lock by his phone.
The password version support the Temporary password

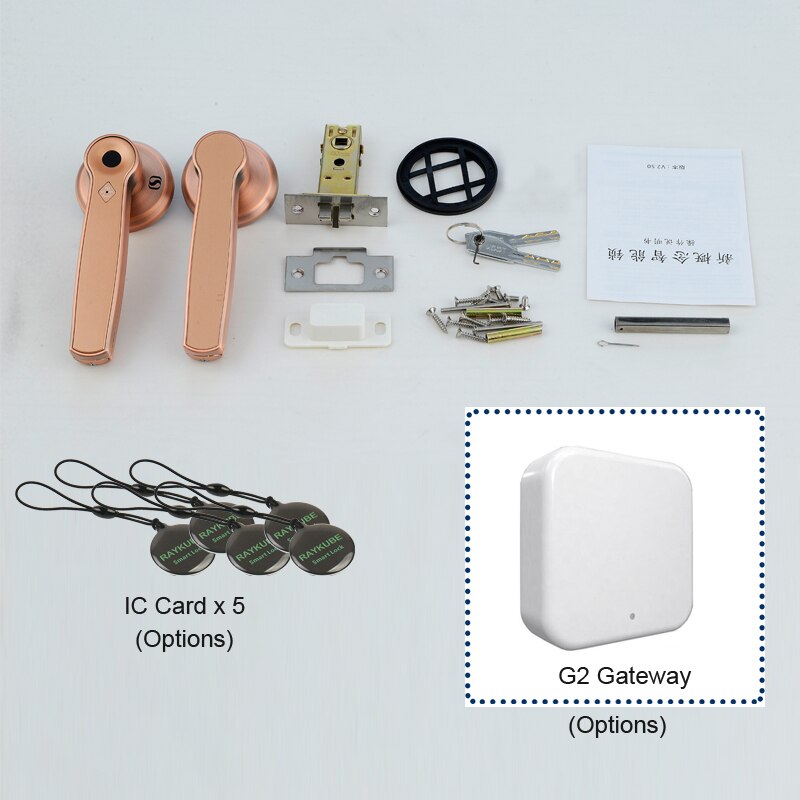

Item Include:
Front Handle x 1 Back Handle x 1 Metal Key x 2 Installtion Accessory Kit x 1 English User Manual x 1 (IC card x 5) (Gateway x 1)
